Ball siphon on pressure side (overpressure) – transparent – INDOOR INSTALLATION

Condensate drain for HVAC systems – indoor installation.
Applicable only on the pressure (overpressure) side.
Maximum overpressure: 2200 Pa.
Material: corrosion-resistant PP.
Connection with rubber sleeve.
Connection (drain) diameter: DN40.
Self-filling siphon with ping-pong ball acting as a non-return valve and removable screw cap for filling and cleaning.
The ping-pong ball prevents air suction when dry, allowing the siphon to fill automatically with the first condensate formation.
Transparent section for visual inspection of water discharge.
The siphon must always drain freely (do not connect directly and continuously to the wastewater system).
Horizontal installation is absolutely required to ensure proper sealing function of the ping-pong ball.

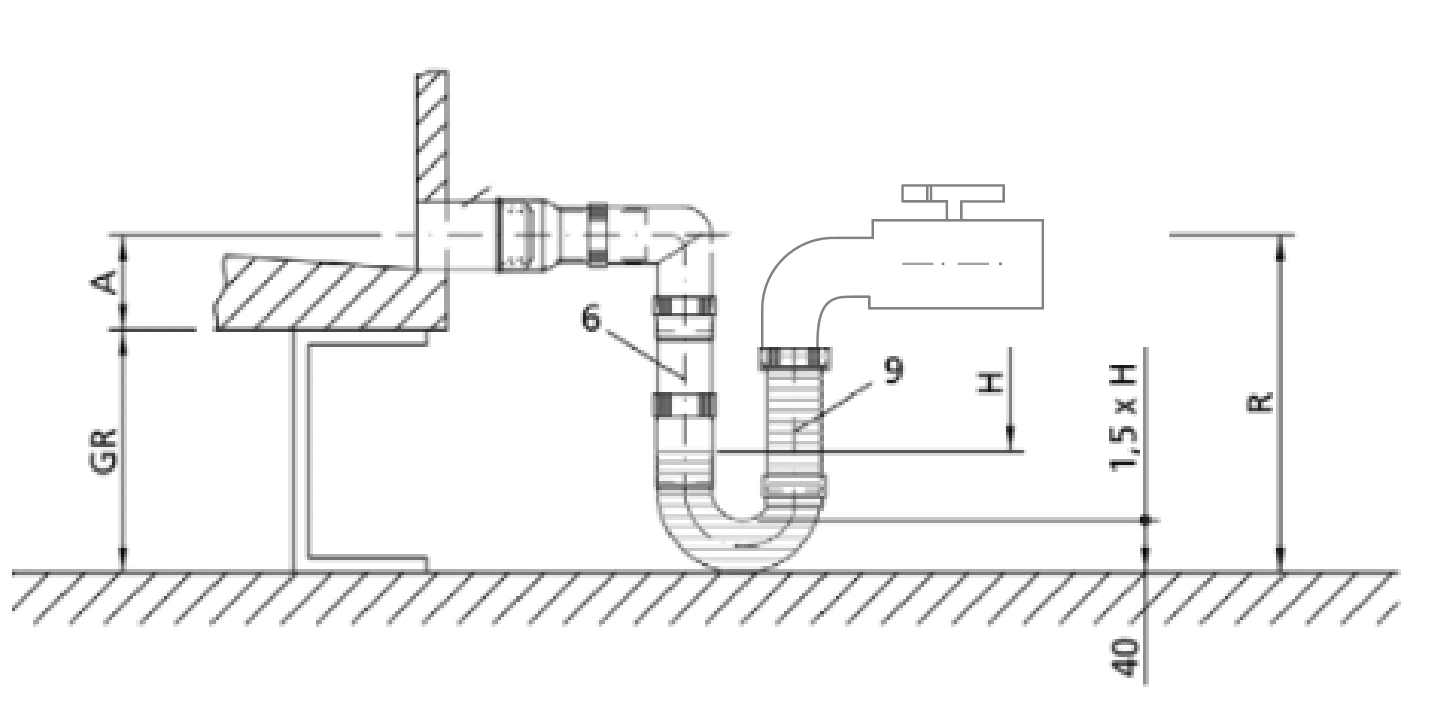

Siphon selection :

Product code	Bal-Sifon drukzijdig (overdruk) – transparant – BINNEN OPSTELLING
Category	Weger
Subcategory	Siphon

Adapter 40/1”
(Transition from condensate tray with 1” male thread to 40 mm siphon connection)

⚠️ Do not forget to order this adapter!
